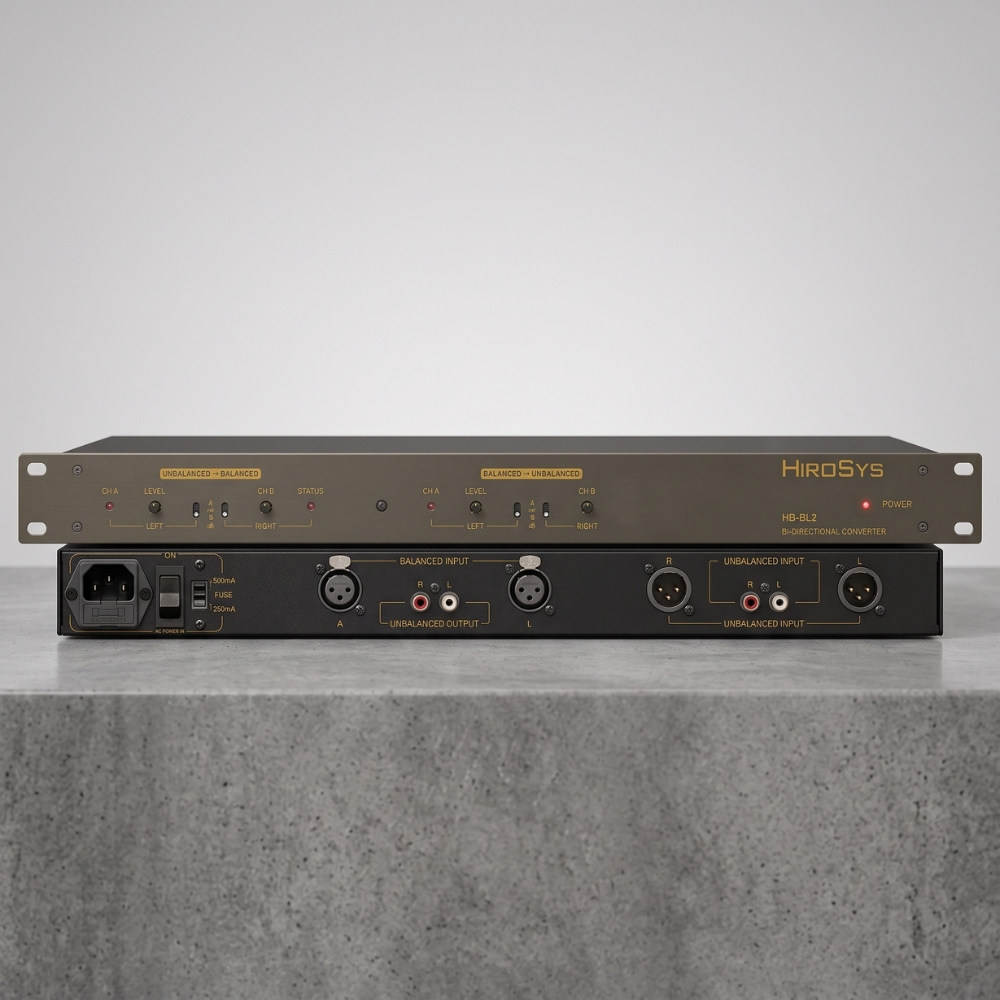

The HB-BL2 is a Bi-Directional stereo balancing, unbalancing and level-shifting interface used to inter-connect consumer, semi-professional and professional audio equipment. In addition, the HB-BL2 is a high-quality line driver for sending and receiving audio signals over long distances.

The HB-BL2 is also a gain conversion, it can take +4dBu balanced signals and convert to -10dBV unbalanced with a gain adjustment within 12dB. For the unbalanced to balanced channels there is a corresponding gain conversion from unbalanced -10dBV to balanced +4dBu with 12dB adjust-ment range.

EASY OPERATION

The HB-BL2 are individual attenuate switches within 3dB step for equipment input level matching quickly. Input signals have two corresponding LED's that indicate signal content.

The normal gains setting are indicated for the multi-turn trimming. For produce +4dBu balanced input to -10dBV unbalanced signal, these setting are possible to Max +12dB unity gain. For produce -10dBV unbalanced input to +4dBu unbalanced signal, these setting are possible to Min -12dB unity gain.

FEATURES

• Correct interfacing of consumer and professional equipment with proper gain offset.
• Independent gain adjustment 12dB on each channel allows for precise level adjustment with provides signal boost for long runs.
• 3dB step attenuate switches for equipment input level matching.
• High quality line driver for sending and receiving audio signals over long cable with Balanced transmission for better CMRR.
• RFI Filters on all inputs and outputs. EMC-proof case significantly improves rejection of radio frequency interference.
• LED indicators show signal contented of each input feed.
• Switchable power supply (110V~120V or 220V~240V).
• IEC-AC power receptacle

SPECIFICATIONS
