DSB12FM
12 Channel Digital - Analog Stage box

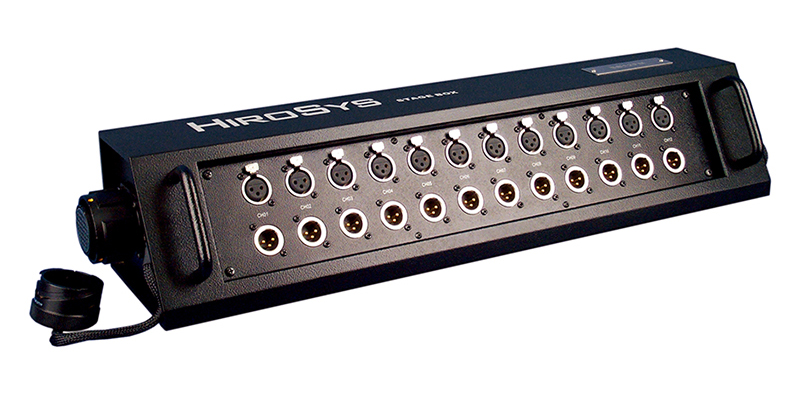

The Digital / Analog Stage-boxes DSB12FM is made with XLRs and the multi-pin connector. You can choose the extension between a cable fitted with the multi-pin connector and the snake on the opposite side, or an extension with two multi-pin connectors and a second cable, with the multi-pin connector and the snake.
Stage-box is made of industrial galvanized sheet steel, and powder coating. Metal mounting XLRs and used, while the connectors are industrial standard multi-pin series.
It features a second connector on the stage-box for stage-mixer parallel. Even with this system, you can choose the extension type between one cable with the multi-pin connector and the snake on the opposite side, or one cable with multi-pin connectors and one additional cable.
The multi-pin connectors include dust cap for waterproof or dust protection. All of the XLR connectors shall have option for the dust cap.
FEATURES
- 12 ways XLR Male and Female connectors.
- 37 pin (12Ch) Multi-pin Male and Female connectors with Duxst cap.
- The two multi-pin connectors are connected in parallel between themselves and with the XLR.
- Industrial galvanized sheet steel and die-cast case made.
SPECIFICATION
| XLR Connector | Multi-pin Connector | ||
| Insertion/ | 15.4kg Maximum Insertion | Spiral with "Snap in" Locking | |
| Withdrawal Forces | 11.0kg Normal Insertion | ||
| 15.4kg Maximum Withdrawal | |||
| 11.0kg Normal Withdrawal | |||
| Lift | 10,000 Operation (Minimum) | 35,000 Operation (Minimum) | |
| Thermal Range | -55°C~+88°C | -55°C~+88°C | |
| Humidity | Meets MIL-STD-202F, Method 107D | Meets MIL C5015 | |
| Salt Spray | Meets MIL-STD-202F, Method 101D | Meets MIL-STD-202F, Method 101D | |
| Shells | Die-cast; Satin-nickel | Aluminium Die-cast; | |
| Black Velvet; | |||
| Socket Contacts | Copper Alloy, Gold-plated | Copper Alloy, Gold-plated | |
| Pin Contacts | Copper Alloy, Gold-plated | Copper Alloy, Gold-plated | |
| Latch Release | Steel, Nickel-plated | Rubber Waterproof Latch | |
| Insert Lock-Cam | Die-cast Zinc | Stainless Street Cam | |
| Waterproof | N/A | 10m Depth for 12 Hours |
