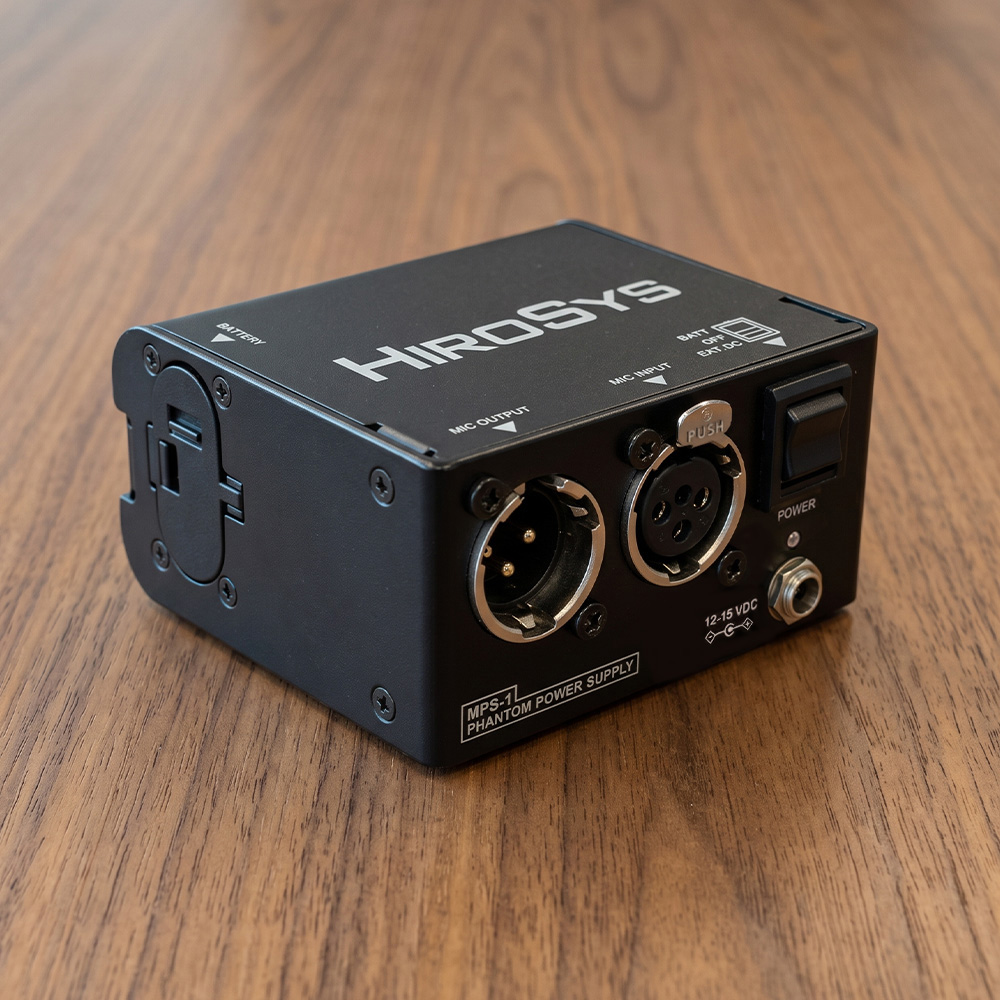

MPS-1

Phantom Power Supply




MPS-1 is a 48-volt phantom power supply capable of powering most condenser microphones. It provides clean, reliable phantom power for a condenser microphone in a rugged, compact, and portable unit. Innovative low power circuitry generates the higher voltage necessary for powering microphones while maximizing battery life.

The MPS-1 is an invaluable and reliable tool in application areas including home or professional recording studios, live sound, PA, permanent installations, DJ, AV, podcasting and broadcasting. Use it with mixers, audio processors, digital audio workstations or anywhere you need phantom power for your microphones.

The MPS-1 can be powered by two AA size batteries or by external 12~15V DC. Long battery life and a bright LED low battery indicator is on the front panel to ensure that the microphone is properly powered during your recording session.

The battery compartment is sealed with a double locks as an extra safeguard measure using the MPS-1 in the field. When opening the battery compartment door it is necessary to slide and push the release latches together.



FEATURES

  • Compact design.
  • 48 volt phantom power supply for condenser microphone.
  • Balanced microphone input and output circuitry.
  • Dual color LED indication for power on and low battery.
  • Double locks battery compartment as an extra safeguard measure.
  • Use of popular AA size batteries.
  • Over 8 hours for operational battery life (alkaline).



SPECIFICATIONS

  Audio Specifications
  Number Of Channels 1 Channel
  Phantom Voltage  48V +/-2V DC
  Short Circuit Output Current 14mA
  Power Requirement 2 AA Alkaline Batteries (Internal)
    12~15V DC Adaptor (External)
  LED Indicator Green-Power On
    Orange-Low Battery

  Connections
  Input/Output/Power XLR Female Input,
    XLR Male Output,
    DC Power Jack (12~15 VDC)
  Switch  Battery/OFF/External Power
  Accessories Furnished  12 VDC Adaptor, Power Cord

  Physical Specifications
  Dimensions W87 × H50 × D82 (mm)
  Nett Weight 430g/0.94lb (Unit Only)
